Stealth Energy

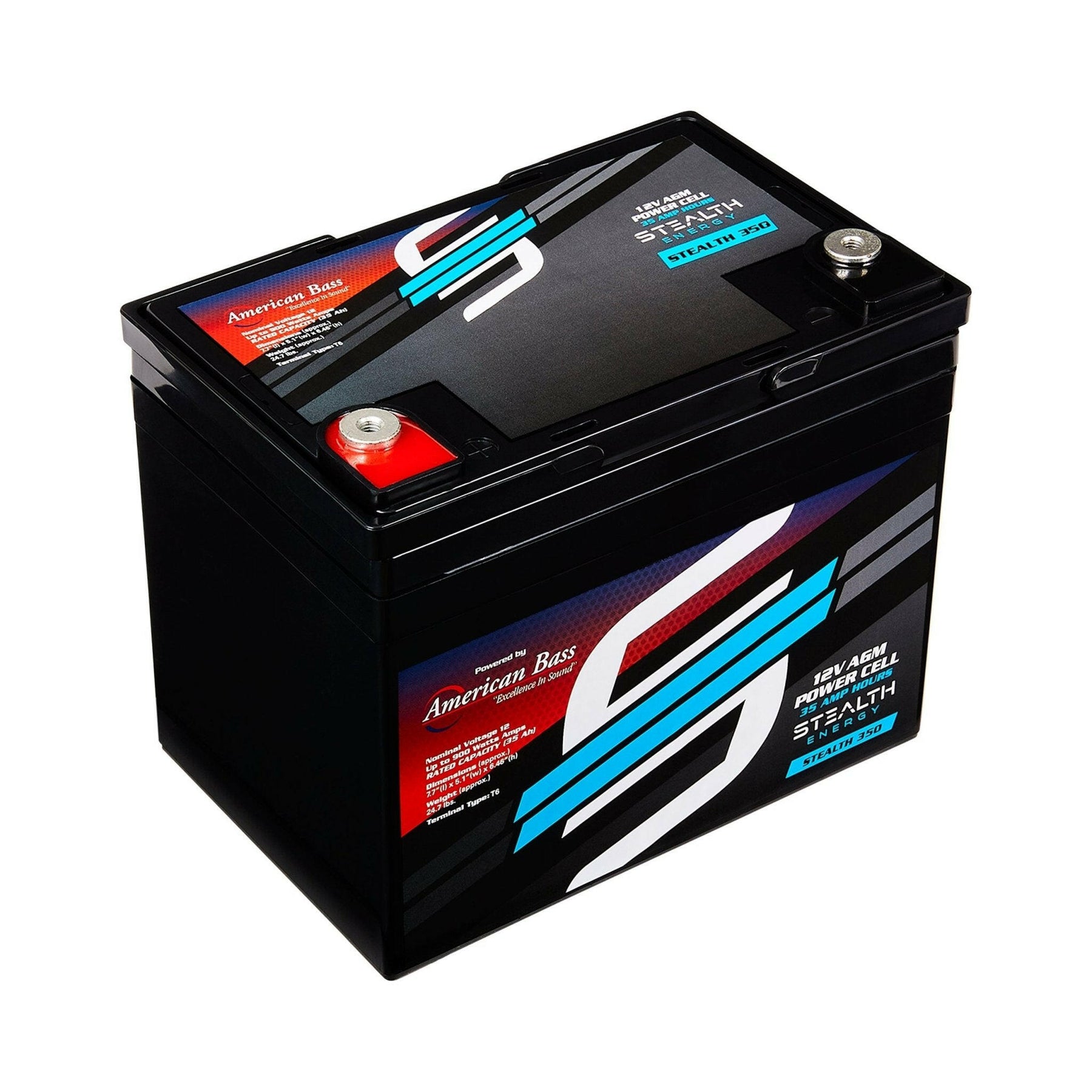

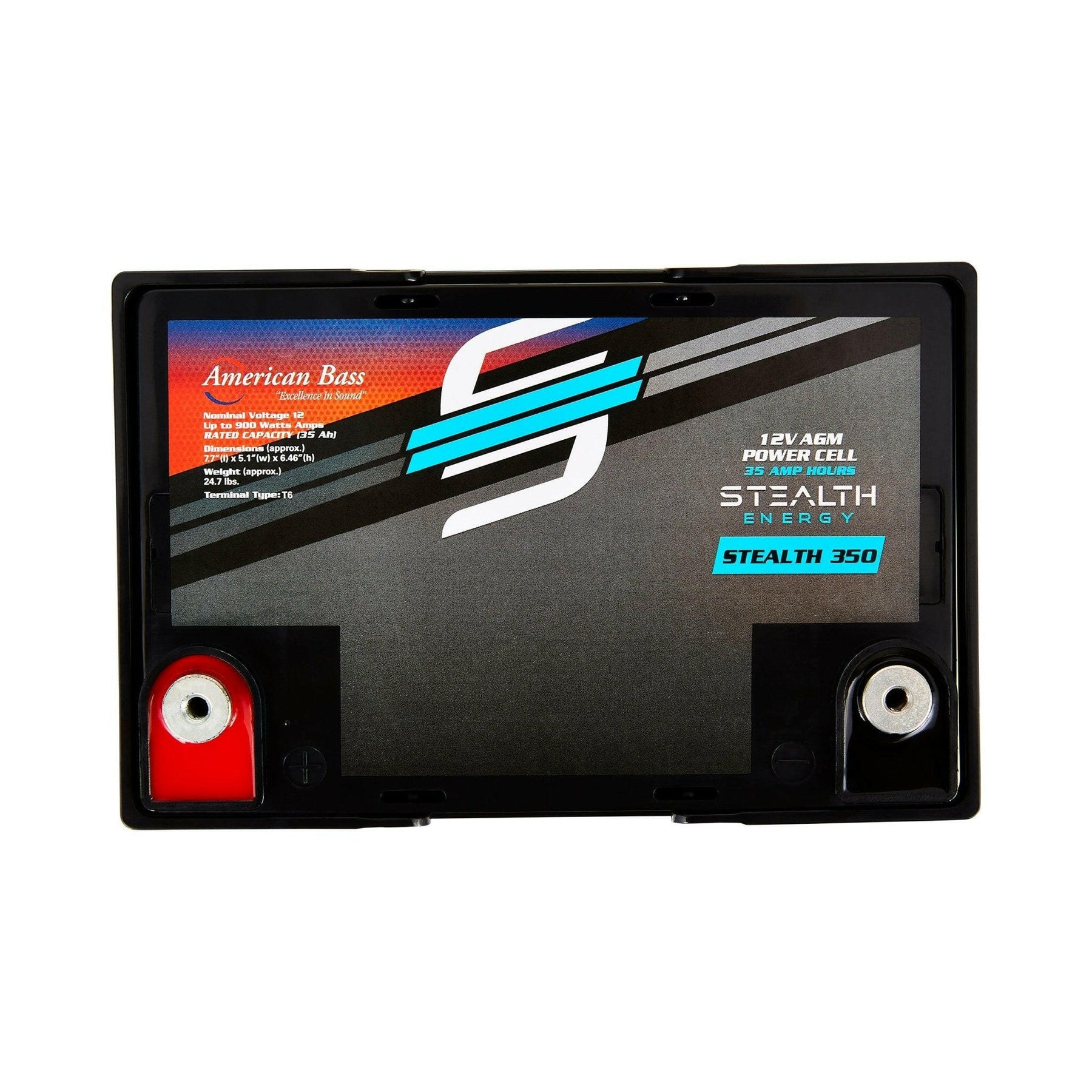

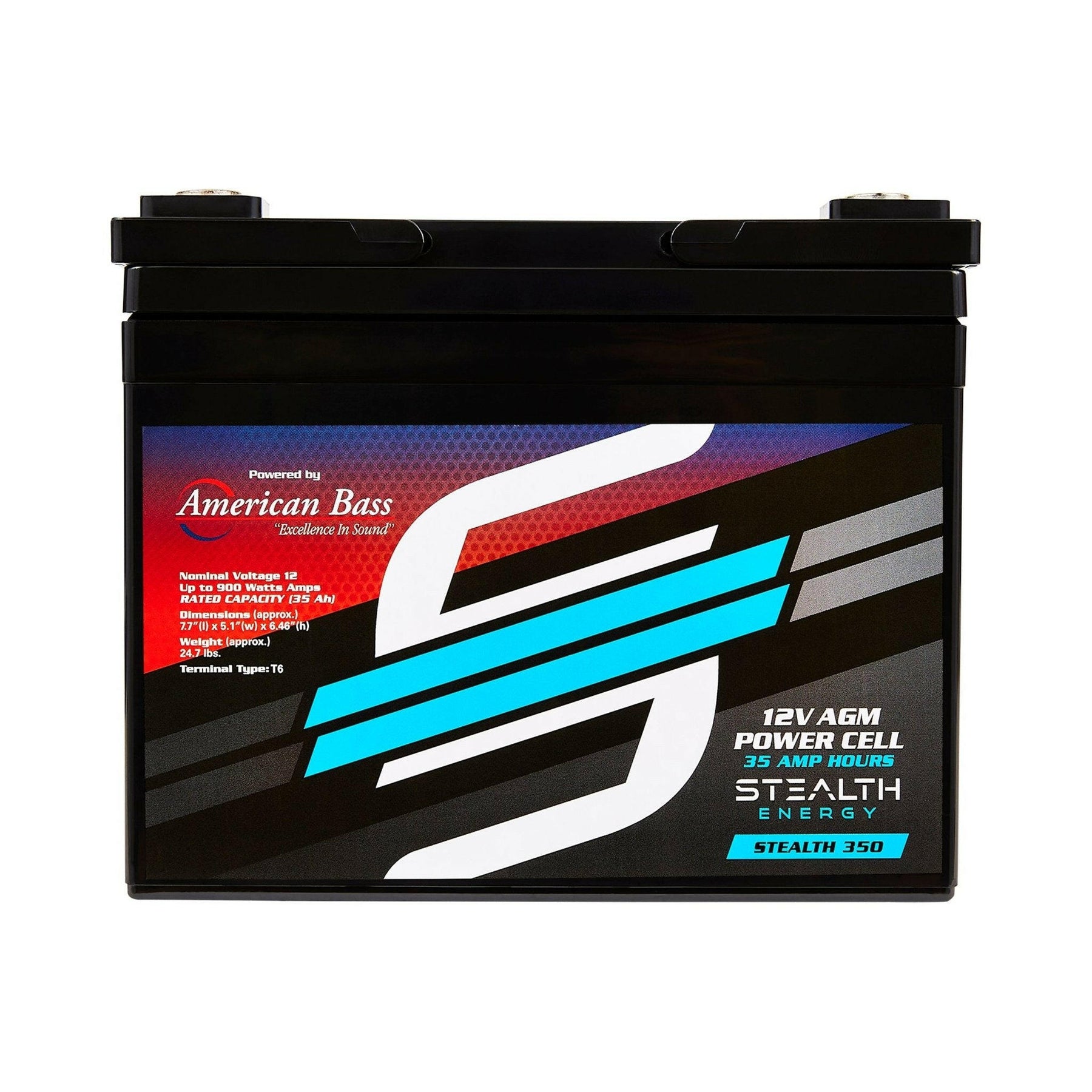

Stealth 350 Battery

$118.32 $160.65
Save $42.33

Quantity:
Pickup available at American Bass Audio Warehouse Usually ready in 24 hours

Stealth 350 Battery

American Bass Audio Warehouse

Pickup available, usually ready in 24 hours

1605 Enterprise Parkway
Twinsburg OH 44087
United States

2166737999

Up To 900 Watt Amplifiers

12V AGM Battery, 35 AH

NOMINAL VOLTAGE 12V
NOMINAL CAPACITY(20HR) 35.0AH
APPROX WEIGHT Approx 11.2 kg (24.7lbs
TERMINAL T6
CONTAINER MATERIAL ABS
MAX. DISCHARGE CURRENT 525A (5s)
INTERNAL RESISTANCE APPROX Approx 11mΩ
NOMINAL OPERATING TEMP. RANGE 25+3 C (77+5 F )
DIMENSION
  • Length: 195+2mm (7.68 inches)
  • Width: 130+2mm (5.12 inches)
  • Container Height: 164+2mm (6.46 inches)
  • Total Height (with Terminal): 167+2mm (6.57 inches)
RATED CAPACITY
  • 35.0 AH/1.75A: (20hr ,1.80V/cell,25 C/77 F)
  • 32.6 AH/3.26A: (10hr ,1.80V/cell,25 C/77 F)
  • 29.7 AH/5.95A: (5hr ,1.75V/cell,25 C/77 F)
  • 26.8 AH/8.93A: (3hr ,1.75V/cell,25 C/77 F)
  • 22.0 AH/22.0A: (1hr ,1.60V/cell,25 C/77 F)
CAPACITY AFFECTED BY TEMPERATURE
  • 40 C (104 F): 103%
  • 25 C (77 F): 100%
  • 0 C (32 F): 86%
OPERATING TEMP.RANGE
  • Discharge: -15~50 C (5~122 F)
  • Charge: 0~40 C (32~104 F)
  • Storage: -15~40 C (5~104 F)

CYCLE USE
  • Initial Charging Current less than 10.5A.
  • Voltage 0 0 0 14.4V~15.0V at 25 C(77 F)Temp. Coefficient -30mV/ C

 STANDBY USE
  • No limit on Initial Charging Current Voltage
  • 13.5V~13.8V at 25 C(77 F)Temp. Coefficient -20mV/ C

SELF DISCHARGE
  • Batteries may be stored for up to 6 months
  • at 25 C(77 F) and then a freshening charge is required.
  • For higher temperatures the time interval will be shorter.
