Stealth Energy

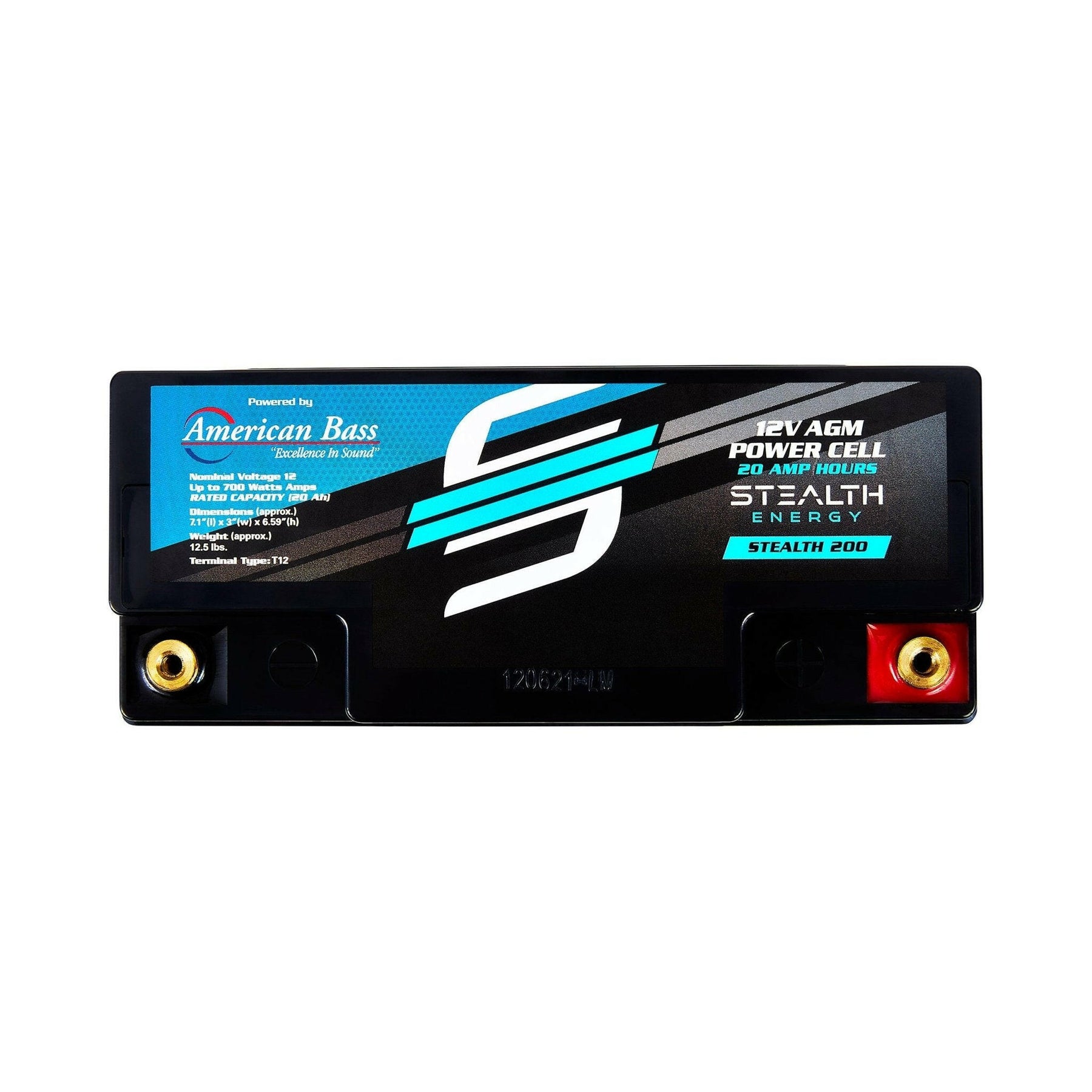

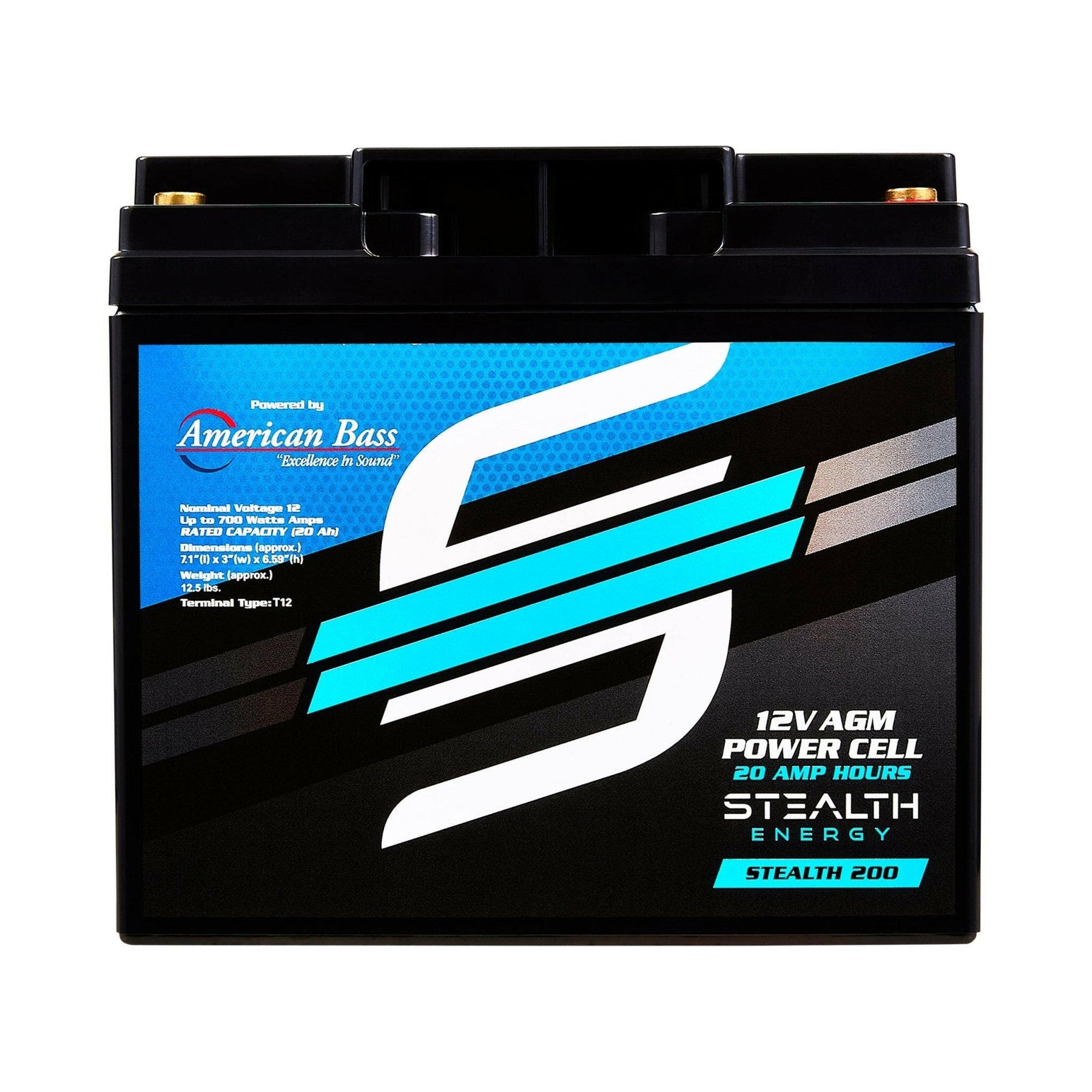

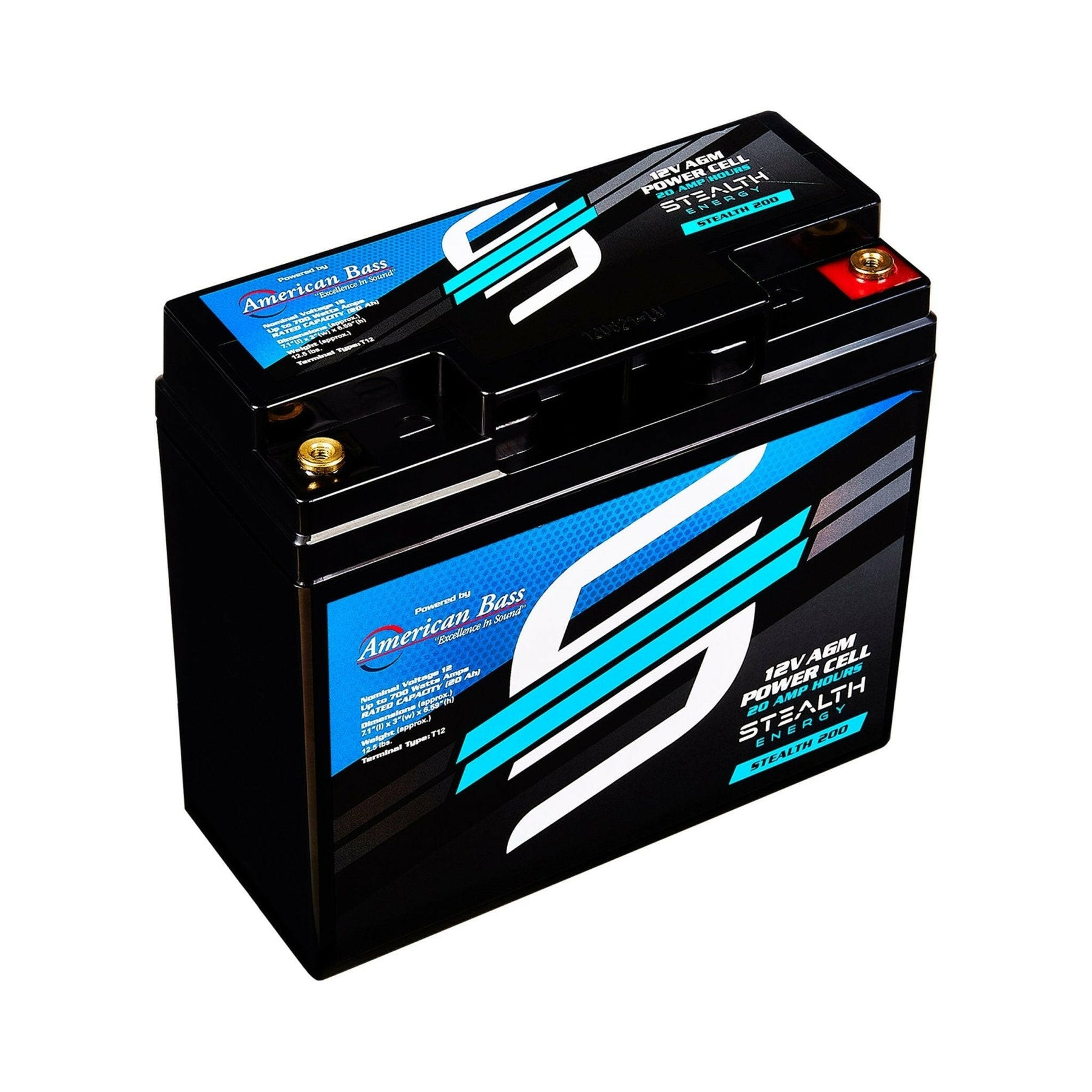

Stealth 200 Battery

$100.73 $118.99
Sold out

Pickup currently unavailable at American Bass Audio Warehouse

Stealth 200 Battery

American Bass Audio Warehouse

Pickup currently unavailable

1605 Enterprise Parkway
Twinsburg OH 44087
United States

2166737999

Up To 700 Watt Amplifiers

12V AGM Battery, 20 AH

NOMINAL VOLTAGE 12V
NOMINAL CAPACITY(20HR) 20.0AH
APPROX WEIGHT Approx 5.78 kg (12.74lbs)
TERMINAL T12
CONTAINER MATERIAL ABS
MAX. DISCHARGE CURRENT 300A (5s)
INTERNAL RESISTANCE APPROX 15mB
NOMINAL OPERATING TEMP. RANGE 25 +3 C (77+5 F )
DIMENSION
  • Length: 181.512mm (7.14 inches)
  • Width: 7712mm (3.03 inches)
  • Container Height: 167.512mm (6.59 inches)
  • Total Height (with Terminal): 167.512mm (6.59 inches)
RATED CAPACITY
  • 20.0 AH/1.00A: (20hr ,1.80V/cell,25 C/77 F)
  • 18.6 AH/1.86A: (10hr ,1.80V/cell,25 C/77 F)
  • 17.0 AH/3.40A: (5hr ,1.75V/cell,25 C/77 F)
  • 15.3 AH/5.10A: (3hr ,1.75V/cell,25 C/77 F)
  • 12.6 AH/12.6A: (1hr ,1.60V/cell,25 C/77 F)
CAPACITY AFFECTED BY TEMPERATURE
  • 40 C (104 F): 103%
  • 25 C (77 F): 100%
  • 0 C (32 F): 86%
OPERATING TEMP.RANGE
  • Discharge: -15~50 C (5~122 F)
  • Charge: 0~40 C (32~104 F)
  • Storage: -15~40 C (5~104

CYCLE USE
  • Initial Charging Current less than 6.0A.Voltage
  • 14.4V~15.0V at 25 C(77 F)Temp. Coefficient -30mV/ C

 STANDBY USE
  • No limit on Initial Charging Current Voltage
  • 13.5V~13.8V at 25 C(77 F)Temp. Coefficient -20mV/ C

SELF DISCHARGE
  • Batteries may be stored for up to 6 months
  • at 25 C(77 F) and then a freshening charge is required.
  • For higher temperatures the time interval will be shorter.
