Stealth Energy

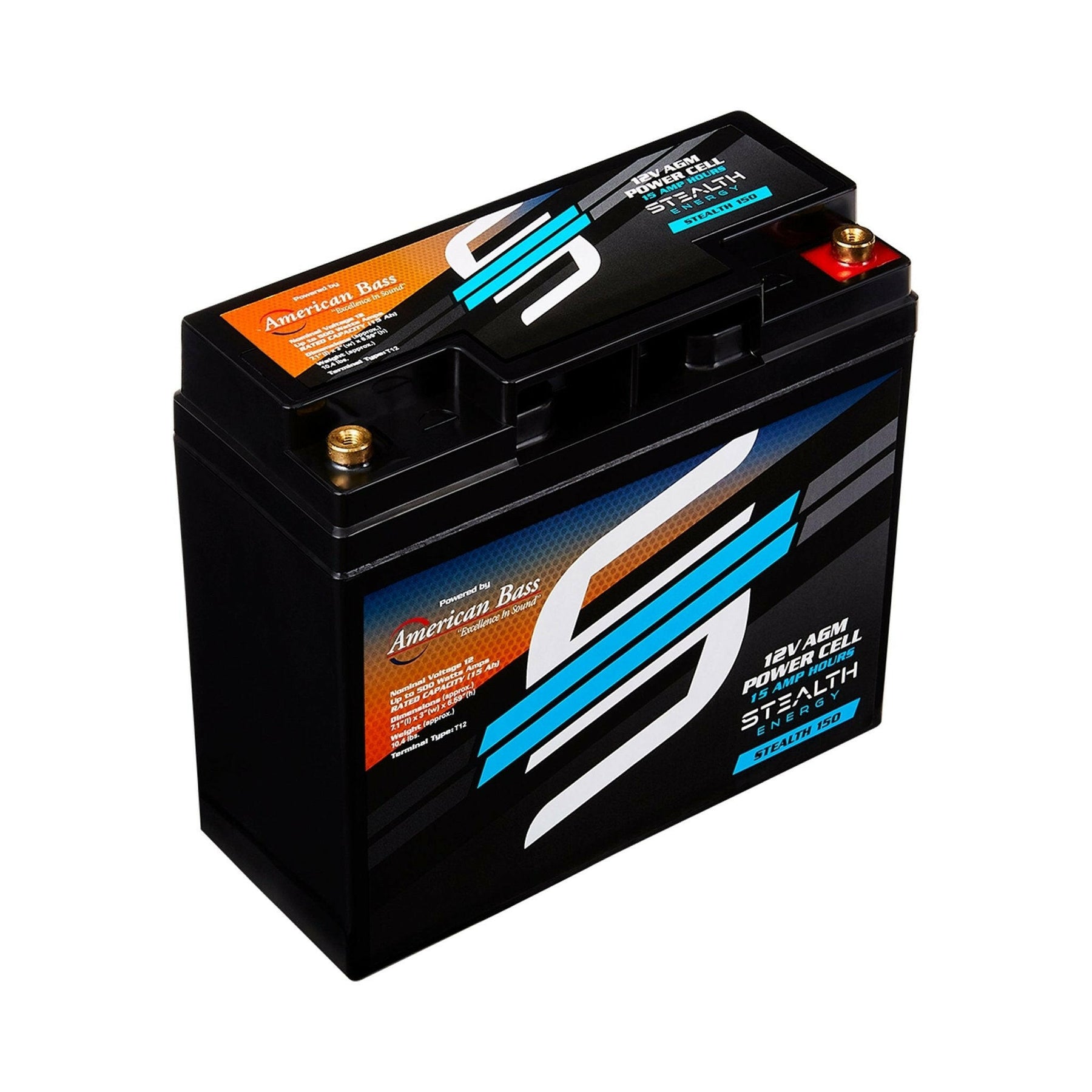

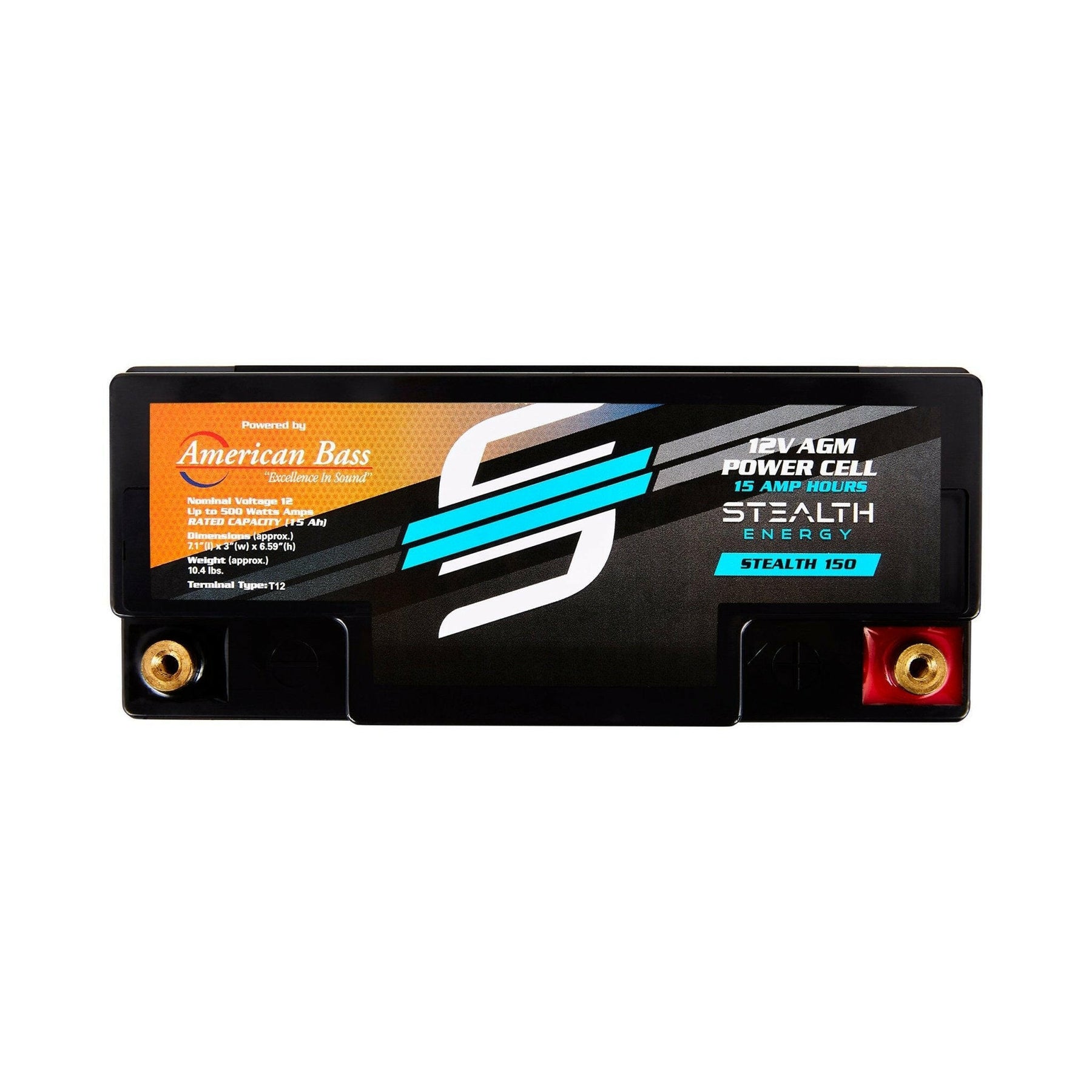

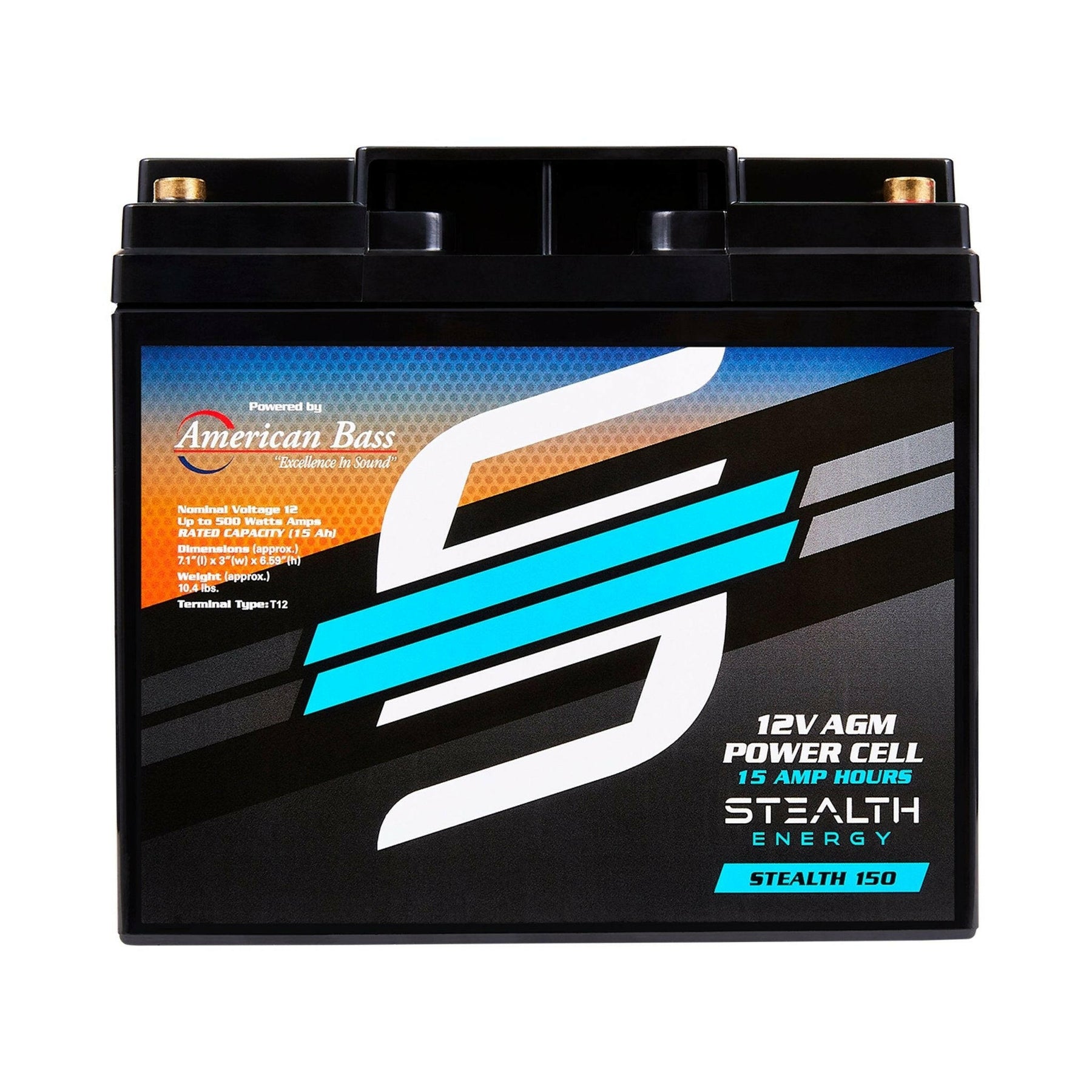

Stealth 150 Battery

Sale price$74.21 Regular price$119.99
Save $45.78
Quantity:
Pickup available at American Bass Audio Warehouse Usually ready in 24 hours

Stealth 150 Battery

American Bass Audio Warehouse

Pickup available, usually ready in 24 hours

1605 Enterprise Parkway
Twinsburg OH 44087
United States

2166737999

Up To 500 Watt Amplifiers

12V AGM Battery, 15 AH

NOMINAL VOLTAGE 12V
NOMINAL CAPACITY(20HR) 15.0AH
APPROX WEIGHT Approx 4.9 kg (10.8lbs)
TERMINAL T12
CONTAINER MATERIAL ABS
MAX. DISCHARGE CURRENT 225A (5s)
INTERNAL RESISTANCE APPROX 18mΩ
NOMINAL OPERATING TEMP. RANGE 25 3 C (77 5 F )
DIMENSION
  • Length: 181.5 2mm (7.14 inches)
  • Width: 76.5 2mm (3.01 inches)
  • Container Height: 167.5 2mm (6.59 inches)
  • Total Height (with Terminal): 167.5 2mm (6.59 inches)
RATED CAPACITY
  • 15.0 AH/0.75A: (20hr ,1.80V/cell,25 C/77 F)
  • 14.0 AH/1.40A: (10hr ,1.80V/cell,25 C/77 F)
  • 12.8 AH/2.55A: (5hr ,1.75V/cell,25 C/77 F)11.5 AH/3.83A: (3hr ,1.75V/cell,25 C/77 F)
  • 9.42 AH/9.42A: (1hr ,1.60V/cell,25 C/77 F)
CAPACITY AFFECTED BY TEMPERATURE
  • 40 C (104 F): 103%
  • 25 C (77 F): 100%
  • 0 C (32 F): 86%
OPERATING TEMP.RANGE
  • Discharge: -15 50 C (5 122 F)
  • Charge: 0 40 C (32 104 F)
  • Storage: -15 40 C (5 104 F)

CYCLE USE

  • Initial Charging Current less than 4.5A.Voltage
  • 14.4V~15.0V at 25 C(77 F)Temp. Coefficient -30mV/ C

 STANDBY USE

  • No limit on Initial Charging Current Voltage
  • 13.5V~13.8V at 25 C(77 F)Temp. Coefficient -20mV/ C

SELF DISCHARGE

  • Batteries may be stored for up to 6 months
  • at 25 C(77 F) and then a freshening charge is required.
  • For higher temperatures the time interval will be shorter.
